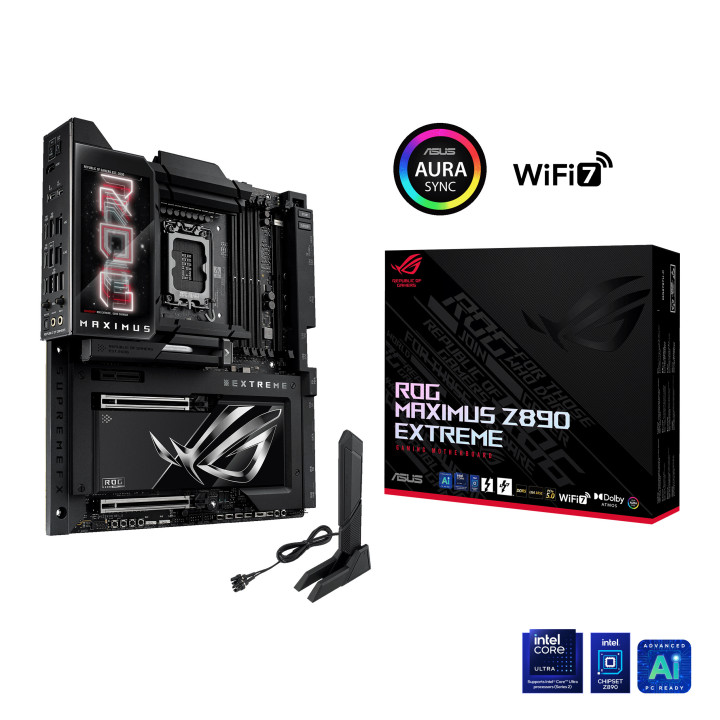

Motherboard ASUS ROG MAXIMUS Z890 EXTREME imagens
A ROG Maximus Z890 Extreme oferece desempenho extremo para gamers e entusiastas, suportando os mais recentes processadores Intel e memória DDR5.
Com refrigeração otimizada, conectividade de ponta (Wi-Fi 7, Thunderbolt 5, PCIe 5.0), e design RGB personalizável, garante máxima potência e estilo.
Ideal para overclocking e personalização avançada, é a escolha perfeita para setups de alto nível.
Desempenho
Suporte para processadores Intel® Core™ Ultra (Série 2) LGA1851 com tecnologias como AI Overclocking e NPU Boost.

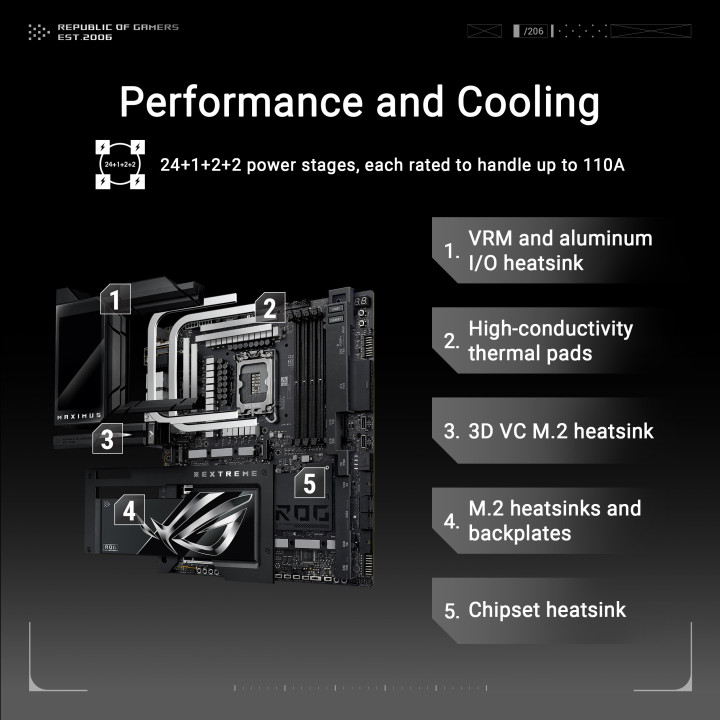

Fases de potência 24+1+2+2 suportam frequências extremas para o Intel Core Ultra 9 285K. Slots de memória otimizados pelo NitroPath suportam kits até DDR5-8800.
Arrefecimento
Dissipador de calor pesado com uma câmara de vapor 3D no slot M.2 superior para dissipar o calor dos drives mais exigentes.
Conectividade
Dez portas USB, incluindo duas Thunderbolt 5, WiFi 7 e duas portas Ethernet (incluindo uma porta de 10GB).
Áudio
Codec SupremeFX 7.1 ALC4082 combinado com DAC quádruplo ESS® ES9219 para áudio cristalino.
Design
Acabamento em cinza carvão com um logotipo reflexivo da ROG e um ecrã LCD de cinco polegadas na cobertura do I/O, com várias opções de personalização no Armoury Crate.
| CPU | Support Intel® Core™ Ultra Processors(series 2) |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | |
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Support up to 8400+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* |
| Dual Channel Memory Architecture | |
| Supports Intel® Extreme Memory Profile (XMP) memory module | |
| ASUS Enhanced Memory Profile III (AEMP III) | |
| Supports DIMM Flex | |
| Supports DIMM Fit | |
| NitroPath DRAM Technology | |
|
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. |
|
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x HDMITM port** |
| 2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | |
| **Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. | |
| ***Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt™ cable. | |
| ****For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. | |
| *****VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | Intel® Core™ Ultra Processors(series 2)* |
| 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)** | |
| Intel® Z890 Chipset** | |
| 1 x PCIe 4.0x4 slot | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
|
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. |
|
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
| Storage | Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Support Intel® Core™ Ultra Processors(series 2)* | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)** | |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)** | |
| Intel® Z890 Chipset | |
| DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports*** | |
| *Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. | |
|
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled. |
|
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| 1 x Marvell® AQtion 10Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth® | Intel® Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. | |
| For Windows 10, only Wi-Fi 6 is supported. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB | Rear USB (Total 10 ports) |
| 2 x Thunderbolt™ 5 ports (2 x USB Type-C®) | |
| 1 x USB 20Gbps port (1 x USB Type-C®) | |
| 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®) | |
| Front USB (Total 10 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)* | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| USB Type-C® power delivery output: max. 5V/3A | |
| *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 10 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback on front panel | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - ESS® ES9219 QUAD DAC | |
| - LED-illuminated audio jacks | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
|
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
| Back Panel I/O Ports | 2 x Thunderbolt™ 5 USB Type-C® ports |
| 1 x USB 20Gbps port (1 x USB Type-C®) | |
| 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®) | |
| 1 x HDMITM port | |
| 1 x Wi-Fi Module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 1 x Marvell® AQtion 10Gb Ethernet port | |
| 2 x LED-illuminated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| 2 x 4-pin Radiator Fan headers | |
| 2 x W_PUMP+ headers | |
| 1 x WB_SENSOR header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| 1 x 8-pin PCIe Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C®) | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers | |
| 2 x Addressable Gen 2 header | |
| 1 x Alteration PCIe mode switch | |
| 4 x BCLK button | |
| 1 x BIOS Switch button | |
| 1 x FlexKey button | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x LN2 Mode jumper | |
| 18 x ProbeIt Measurement Points | |
| 1 x ReTry button | |
| 2 x RSVD switchs | |
| 1 x RSVD header | |
| 1 x Safe Boot button | |
| 1 x Slow Mode switch | |
| 1 x Start button | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | Extreme OC Kit |
| - FlexKey button | |
| - LN2 Mode | |
| - ProbeIt | |
| - ReTry button | |
| - Safe boot button | |
| - Start button | |
| - Slow Mode | |
| Extreme Engine Digi+ | |
| - 10K Black Metallic Capacitors | |
| - MicroFine Alloy Choke | |

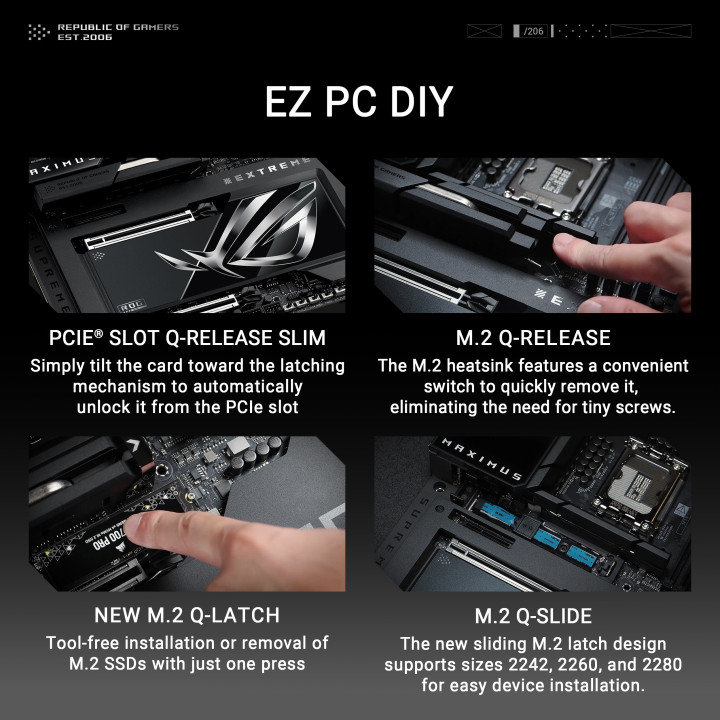

| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - M.2 Q-Release | |
| - M.2 Q-Slide | |
| - Q-Release Slim (with PCIe SafeSlot) | |
| - Q-Antenna | |
| - Q-Code | |
| - Q-Connector | |
| - Q-Dashboard | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| - Q-DIMM.2 | |
| ASUS Thermal Solution | |
| - Fan bracket | |
| - M.2 heatsink backplate | |
| - M.2 heatsink | |
| - Metal backplate | |
| - VRM heatsink design | |
| - 3D VC M.2 Heatsink | |
| ASUS EZ DIY | |
| - Backplate | |
| - BIOS FlashBack™ button | |
| - Clear CMOS button | |
| - CPU Socket lever protector | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| Aura Sync | |
| - Addressable Gen 2 headers | |
| Dual BIOS | |
| Full Color 5" LCD Display | |
| ROG M.2 PowerBoost | |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | |
| - Support: up to 60W fast charging and USB Wattage Watcher* | |
| - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| - Compatible with PD3.0 and PPS | |
| * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported. | |
| Software Features | ROG Exclusive Software |
| - ROG CPU-Z | |
| - Dolby Atmos | |
| - Internet Security (1-year full version) | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (1 year full version) | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - GameFirst | |
| - HWiNFO | |
| - Power Saving | |
| - LCD Display | |
| ASUS AI Advisor | |
| ASUS Driver Hub | |
| Turbo Vcore | |
| ASUS GlideX | |
| Thunderbolt™ Share | |
| USB Wattage Watcher | |
| WinRAR (40 Days Free Trial) | |
| Adobe Creative Cloud (Free Trial) | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| NPU Boost | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| - ASUS MyHotkey | |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME |

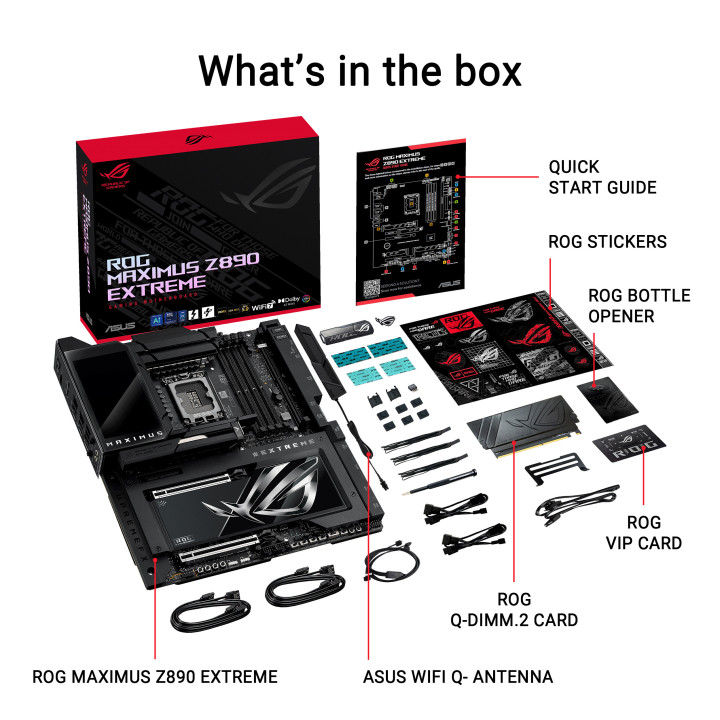

| Accessories | Cables |
| 1 x 1-to-3 ARGB splitter cable | |
| 1 x 1-to-2 ARGB splitter cable | |
| 2 x 1-to-4 fan splitter cable | |
| 2 x ROG weave SATA 6G cable packages | |
| 1 x 3-in-1 Thermistor cables pack | |
| ROG Q-DIMM.2 with Heatsink | |
| 1 x ROG DIMM.2 with heatsink | |
| 1 x M.2 pad package for ROG Q-DIMM.2 | |
| 2 x Thermal pad for ROG Q-DIMM.2 | |
| Additional Cooling Kit | |
| 2 x Thermal pad for M.2 22110 | |
| 1 x DDR5 Fan holder | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Q-connector | |
| 1 x ROG logo plate sticker | |
| 1 x ROG screwdriver | |
| 1 x ROG stickers | |
| 1 x ROG VIP card | |
| 2 x M.2 Q-Slide packages | |
| 6 x M.2 backplate rubber packages | |
| 1 x ROG Bottle Opener | |
| Installation Media | |
| 1 x USB drive with utilities and drivers | |
| Documentation | |
| 1 x Quick start guide | |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | E-ATX Form Factor |
| 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
| Placa gráfica on-board | Não |
| Componente para | PC |
| Wi-Fi | Sim |
| Bluetooth | Sim |
| Fabricante do processador | Intel |
| Família de chipset da placa-mãe | Intel |
| Processador | Intel Core Ultra (Series 2) |
| Canais de memória | Duplo canal |
| Memória interna máxima | 192 GB |
| Quantidade de portas VGA | 0 |
| Quantidade de portas HDMI | 1 |
| Largura | 305 mm |
| Ethernet LAN | Sim |
| Quantidade de portas USB 3.2 Gen 1 (3.1 Gen 1) Tipo A | 0 |
| Quantidade de portas Ethernet LAN (RJ-45) | 2 |
| Tipo de BIOS | UEFI AMI |
| Canais de saída de áudio | 7.1 canais |
| Número de unidades de disco rígido suportadas | 4 |
| Níveis RAID | 0, 1, 5 |
| Apoio a tecnologia paralela de processamento | Não suportado |
| Conetores USB 3.2 Gen 1 (3.1 Gen 1) | 2 |
| Quantidade de portas USB 2.0 | 0 |
| Quantidade de portas USB 3.2 Gen 2 (3.1 Gen 2) Tipo A | 5 |
| Quantidade de portas DVI-D | 0 |
| Entrada de microfone | Sim |
| Motherboard chipset | Intel Z890 |
| Quantidade de portas USB 3.2 Gen 2 (3.1 Gen 2) Tipo C | 2 |
| Versão Bluetooth | 5.4 |
| Padrão Wi-Fi máximo | Wi-Fi 7 (802.11be) |
| Quantidade de portas USB 3.2 Gen 1 (3.1 Gen 1) Tipo C | 0 |
| Tipo de interface ethernet | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Compatível com RAID | Sim |
| Quantidade de armazenamento de drives compatíveis | 10 |
| Tipo de ranhuras de memória | DIMM |
| Quantidade de slots de memória | 4 |
| Tipos de memórias compatíveis | DDR5-SDRAM |
| Conetores USB 2.0 | 2 |
| Conetores USB 3.2 Gen 2 (3.1 Gen 2) | 1 |
| Quantidade de conetores SATA III | 4 |
| Cor do produto | Preto |
| Socket do processador | LGA 1851 (Socket V1) |
| Sistema operativo Windows compatível | Windows 11 |
| Interfaces de armazenamento suportadas | M.2, SATA III |
| Forma da motherboard | ATX |
| Tipos de unidade de armazenamento suportados | HDD & SSD |
| Profundidade | 277 mm |
| Quantidade de portas USB 3.2 Tipo-C Gen 2x2 | 1 |
| Comprimento da embalagem | 380 mm |
| Profundidade da embalagem | 320 mm |
| Altura da embalagem | 125 mm |
| Peso da embalagem | 5,73 kg |
| Porta de saída S/PDIF | Sim |
| Conector ATX (24-pin) | Sim |
| Compatibilidade ECC | Não ECC |
| Velocidade de relógio de memória suportada (máx.) | 8800 MHz |
| Memória não guardada | Sim |
| Conetor áudio do painel frontal | Sim |
| Conetor da ventoínha do CPU | Sim |
| Conetor de energia EPS (8 pinos) | Sim |
| Conetor de energia 12V | Sim |
| Pino RGB LED | Sim |
| Chip de áudio | Realtek ALC4082 |
| Ranhuras PCI Express x16 (Gen 5.x) | 2 |
| Número de slots M.2 (M) | 6 |
| Tamanho da memória BIOS | 512 Mbit |
| Botão Clear CMOS | Sim |
| Quantidade de conetores de ventoínha de chassis | 2 |
| Quantidade de portas thunderbolt | 2 |
| Conectores USB 3.2 Gen 2x2 | 1 |
| Número de conectores SATA | 0 |
| Número de conectores SATA II | 0 |
| Quantidade de portas mSATA | 0 |
| Ranhuras PCI Express x4 (Gen 4.x) | 1 |
Sugestões personalizadas para si:
Motherboard ASUS ROG MAXIMUS Z890 EXTREME
1 437,95 €
