Standard&Protocol
IEEE802.3, IEEE802.3u

Interface
1*10/100Mbps WAN port
 3*10/100Mbps LAN ports

Antenna
4*5dBi external antennas

Button
1*WiFi on/off, 1* Reset/WPS button

Power
Input：100-240V—50/60Hz, 0.2A
Output：DC 12V==1A

Dimension
220*141.5*49mm

LED
System*1,WAN*1, LAN*1, 2.4G*1, 5G*1,WPS*1

Wireless Standards
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz

Data rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps

Frequency
Simultaneous dual band 2.4 & 5GHz

Transmit Power
CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm

Basic Features
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming

Wireless Security
WPA-PSK/WPA2-PSK, WPA/WPA2
 Wireless Security: Enable/Disable
 WPS(WiFi Protected Set-up) fast encryption

Internet Connection Type
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)

Operating Mode
Wireless Router Mode
Universal Repeater Mode
WISP Mode

DHCP Server
DHCP Server
DHCP Client List
DHCP Reservation

Virtual Server
Port Forwarding
DMZ Host
UPnP

Security
Client Filter
Parental Control(support black list and white list)
Remote Web Management

Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet

DDNS
Support DynDNS, No-ip, 3322.org, Oray.com, 88ip

VPN
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client

Features
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App

Other
Bandwidth Control
Guest Network
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser

Temperature
Operating Temperature: 0℃ ~ 40℃
 Storage Temperature: -40℃ ~ 70℃.

Humidity
Operating Humidity:10% ~ 90% RH non-condensing
 Storage Humidity: 5% ~ 90%RH non-condensing.

Default Settings
Default Access: tendawifi.com

Package Content

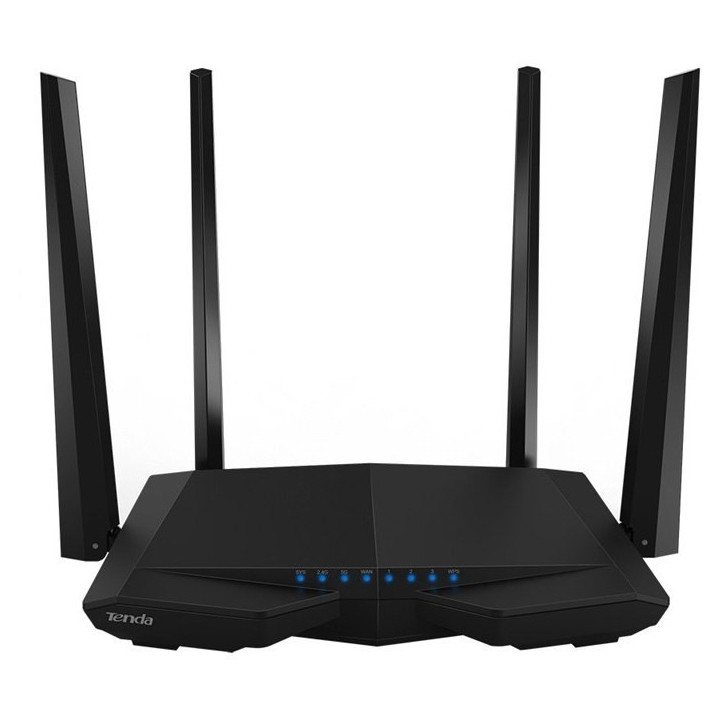

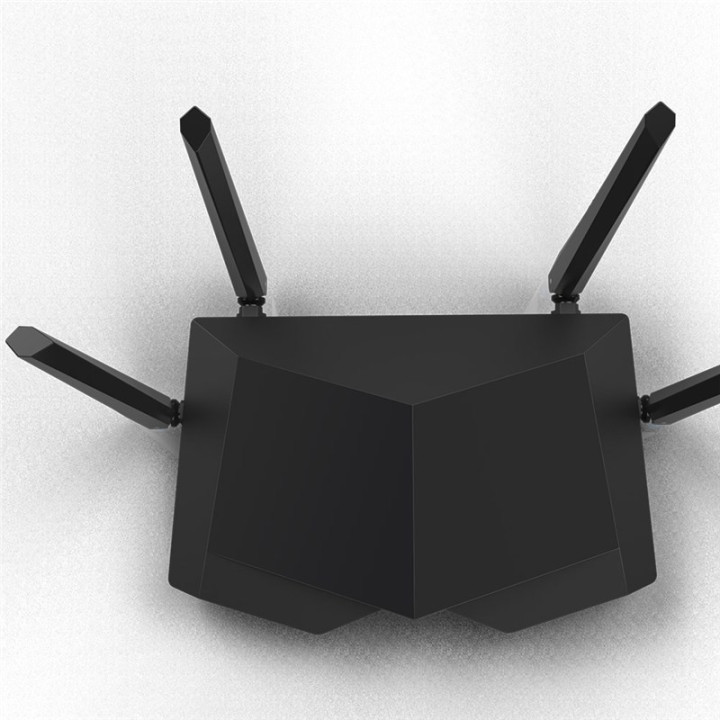

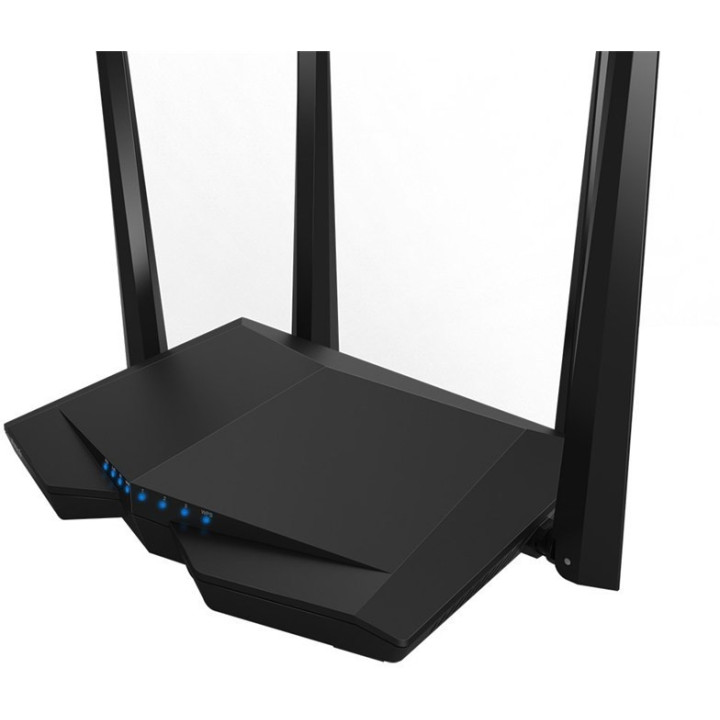

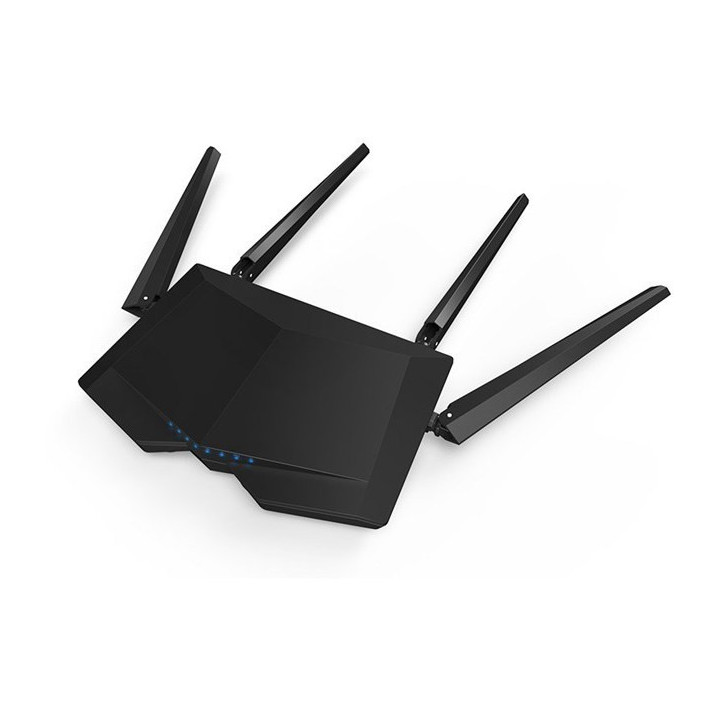

AC1200 Smart Dual-Band WiFi Router
Power Adapter
Install Guide
Ethernet Cable

Garantia
2 Anos
