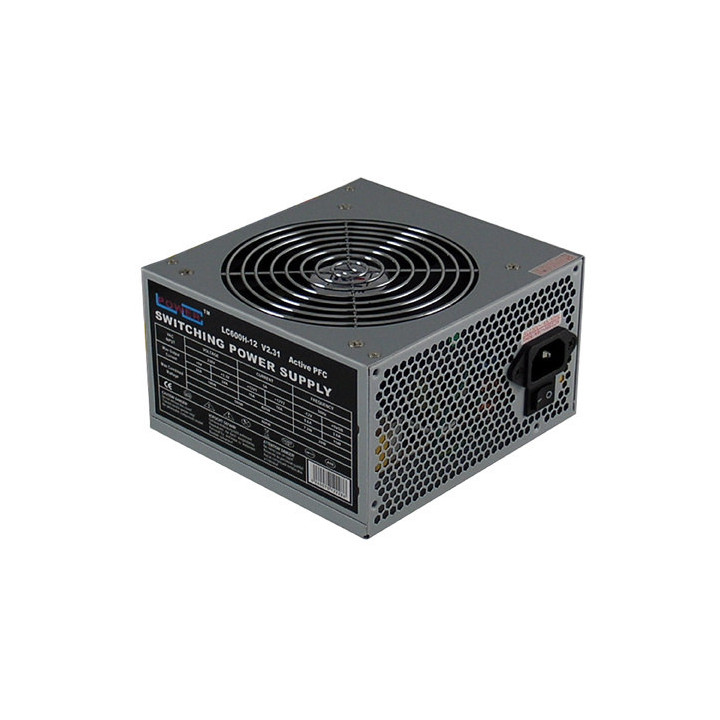

Fonte LC-Power Office Series 600W 120mm, 20/24 pin, 2x PCIe, 6x SATA, active PFC imagens
Power supply type
Office Series
ATX standard
ATX V2.31
Connectors
20+4 pin mainboard 1x 40 cm
4+4 pin mainboard 12V 1x 40 cm
PCI-Express 1x PCI-Express 6-Pin 40 cm;
1x PCI-Express 6+2-Pin 50 cm
SATA 6 (2x 40 / 2x 50 / 1x 55 / 1x 65 cm)
PATA 3 (2x 60 / 1x 75 cm)
FDD 2x 70 cm
Mark of conformity
CE
Fan
120 mm
PFC
active
Dimension h x w x d
86 x 150 x 140mm
Weight (retail)
1,467 kg
Power rating
600W max. / peak
+3,3V 24A
+5V 24A
+12V1 20A
+12V2 20A
Standby consumption
0,25W - ErP 2013
Temperature control for case fan
yes
Security circuitry
OVP = Over-Voltage Protection
OPP = Over-Power Protection
SCP = Short-Circuit Protection
UVP = Under-Voltage Protection
Full range (110V/220V)
no
Haswell compatible
yes
| Energia total | 600 W |
| Propósito | PC |
| Conetor de energia periférico (Molex) (4 pinos) | 3 |
| Cor do produto | Cinzento |
| Voltagem de entrada AC | 200 - 240 V |
| Conector de alimentação de motherboard | 24-pin ATX |
| Forma da fonte de alimentação (PSU) | ATX |
Fonte LC-Power Office Series 600W 120mm, 20/24 pin, 2x PCIe, 6x SATA, active PFC
600W max. / peak | 120mm fan | 1x PCI-Express 6 pin & 1x PCI-Express 6+2 pin | Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry
